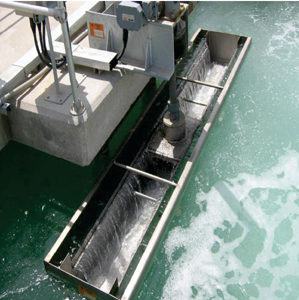

AQUA WHIZZ SBR continuous inflow and treatment is accommodated through alternating react, and decant sequences in SBR trains. Each train, through a typically operating cycle of three to five hours, provides all of the processes of activated sludge treatment in one basin.
Parameters | Units | Raw Sewage | Secondary Treated Sewage | Tertiary Treated Sewage |
pH | unitless | 6.5-8.5 | 6.5-8.5 | 6.5-8.5 |
Biochemical Oxygen Demand(BOD5) | mg/L | 250-400mg/L | <30 | <10 |
Chemical Oxygen Demand(COD) | mg/L | 400-700 | <250 | <100 |
Total Suspended Solids(TSS) | mg/L | 200-450 | <50 | <10 |
Oil and Grease | mg/L | 20-40 | <10 | <2 |
Coliforms | Nos/100ml | 10^6-10^7 | <100 | <100 |
Superior sludge settling performance due to bio-selector and aerobic/anoxic/anaerobic cyclic sequences.
Suppress filamentous bacteria thus lower potential sludge bulking.
Enhanced nutrient removal(Denitrification and Bio-P) without chemicals or separate tanks.
Built-in equalization capacity preventing performance deterioration during surge conditions.

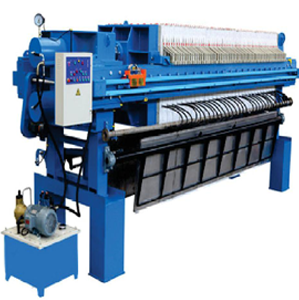

We bring-forth a wide array of Filter Press Machine,which is designed for the separation of solid and liquid. Offered machine is widely used for industrial filtration application by using pressure feeding method.Furthermore,it is devloped by using latest technology and premium quality materials to offer maximum filtration efficiency and longer service life. Clients can get any varient of this Filter Press Machine from us at the best market price.
Less operating cost
Easy Installation
Easy to operate and maintain
Longer service life

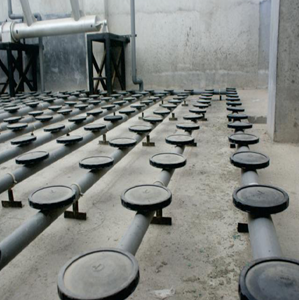

Fine pore flexible membrane diffusers provide operational flexiblity with maximum oxygen transfer efficiency for aeration tank.
Typical efficiency of a full floor coverage diffused aeration system in clean water is 2%/ft submergence or 6.6%/m submergence.When converted to mass transfer into process of dirty water,it is typically closer to about half of those figures.
The Aqua Whizz disc diffuser is a fine pore flexible membrane diffusers that provide operational flexiblity with maximum oxygen transfer efficiency in aeration system.
Aqua Whizz diffusers employ a 3/4 inch diameter PT(male) threaded connection for ease of installation/maintenance and universal application.Alternate materials of constructions are available for special applications.

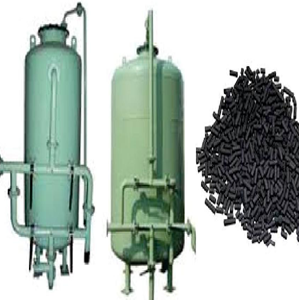

Flow: | 1M3/Hr.-400 M3/Hr |
Filtration Velocity: | 12 to 18 M3/Hr./M2 |
Diameter(Vertical Vessel): | 0.225Mts.-4.0Mts. |
Length(Horizontal Vessel): | 3.0Mts.-11Mts. |
MOC: | FRP/Mid Steel/Stainless Steel Coating/Lining Epoxy/FRP/Rubber Lined |
Chlorine,Colour,Odour removal: | 85-90% |
Design Code: | ASME/IS |
Design Pressure: | Up to 10 Bar |
Working Pressure: | 1.1 to 3.5 Bar |
Clear Pressure Drop: | 0.3 Bar |
Top distribution system: | bell mouth |
Bottom distribution system: | strainer plate or Header & laterals |
For More information: Download Brochure
